TL;DR
Researchers from East China University of Science and Technology have uncovered how thermal aging causes degradation in low-silver heterojunction solar cell electrodes. Their findings highlight interdiffusion and defect formation as key factors in long-term performance loss.
Chinese researchers have identified the primary degradation pathways in low-silver heterojunction (HJT) solar cell electrodes subjected to thermal aging, revealing that interdiffusion between silver and copper layers significantly increases contact resistance and impairs electrical performance. This discovery provides critical insights for improving the long-term reliability of cost-effective photovoltaic modules.
The study, conducted by scientists at East China University of Science and Technology, focused on silver-coated copper electrodes used in heterojunction solar cells. They employed accelerated thermal aging tests to simulate long-term operation, analyzing changes in electrical properties through transmission line method (TLM) measurements. Results showed that both line resistance and contact resistivity increased with aging time and temperature, with contact resistivity being particularly sensitive, indicating interfacial degradation as the dominant failure mechanism.
Using advanced microstructural analysis techniques such as energy-dispersive X-ray spectroscopy (EDS), focused ion beam scanning electron microscopy (FIB-SEM), and X-ray diffraction (XRD), the researchers confirmed that interdiffusion of silver and copper, along with defect formation, drives the degradation process. Initially, sintering improves particle contact, but over time, interdiffusion and defect accumulation cause the internal conductive network to fragment, leading to increased electrical resistance and reduced efficiency.
The study concludes that the transition from a continuous conductive network to a fragmented, defect-laden structure underpins the long-term electrical degradation, emphasizing the importance of stabilizing the interface to enhance device durability.
Implications for Cost and Reliability of HJT Modules
This research matters because it identifies key degradation mechanisms that threaten the long-term performance of low-silver electrodes in heterojunction solar cells, which are increasingly used to reduce costs and improve efficiency. Understanding interdiffusion and defect formation guides manufacturers in developing more stable electrode designs, potentially extending module lifespans and lowering overall system costs.
By clarifying the microstructural evolution during thermal aging, the findings provide a pathway for improving metallization strategies, balancing silver reduction with the need for durability. This is particularly relevant as the photovoltaic industry seeks sustainable, cost-effective solutions for large-scale deployment.
low-silver heterojunction solar cell electrodes
As an affiliate, we earn on qualifying purchases.
As an affiliate, we earn on qualifying purchases.
Background on Silver-Coated Copper Electrodes in HJT Cells
Heterojunction (HJT) solar cells are known for high efficiency, but their long-term reliability depends heavily on the stability of metallization layers. Traditionally, silver has been favored for its excellent conductivity, but its high cost has prompted research into low-silver alternatives, such as silver-coated copper electrodes. Prior studies indicated that thermal aging could cause interdiffusion and microstructural changes, but detailed mechanisms remained unclear, especially for thin silver shells used in commercial pastes.
This study builds on earlier work by focusing on accelerated aging tests to simulate long-term operation, aiming to establish a clear link between microstructural evolution and electrical degradation. The findings aim to inform the design of more reliable, cost-efficient metallization strategies for future HJT modules.
“Our study systematically investigates the thermal aging behavior of silver-coated copper electrodes, revealing significant increases in contact resistance due to interdiffusion between the Ag and Cu layers.”
— an anonymous researcher
Clore Automotive SOLAR Digital 12V Battery and System Tester
12 Volt battery and system testing
As an affiliate, we earn on qualifying purchases.
As an affiliate, we earn on qualifying purchases.
Remaining Questions on Long-Term Stability Strategies
It is not yet clear which specific material modifications or interface treatments can most effectively prevent interdiffusion and defect formation in low-silver electrodes. Further research is needed to develop practical stabilization techniques and validate their effectiveness under real-world conditions.
Aolidsive Photovoltaic Module Tester, MPPT Solar Meter for Maximum Power Point Tracking 2000W LCD with 150V 45A for Solar Panel Maintenance by Field Engineers
Real Time MPPT Reading: Photovoltaic module tester displays maximum power point voltage and current on large LCD screen,…
As an affiliate, we earn on qualifying purchases.
As an affiliate, we earn on qualifying purchases.
Next Steps for Improving Electrode Durability
Researchers plan to explore material modifications, such as barrier layers or alternative coatings, to inhibit interdiffusion. Additionally, testing of these strategies under real-world operating conditions will be essential to confirm their potential for enhancing long-term reliability of heterojunction solar modules.

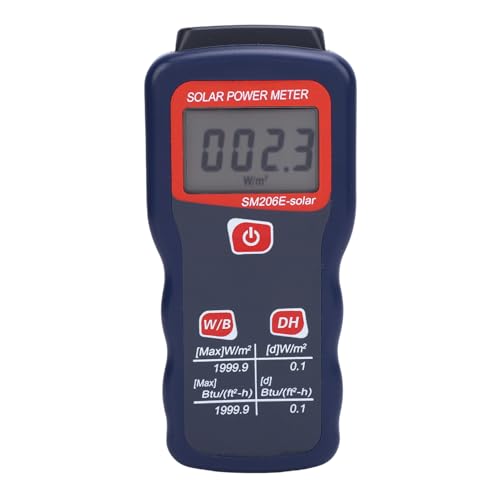

OPPWONG Digital Solar Irradiance Meter, Solar Power Meter with Data Hold Function, Sun Measurement, Ideal for Energy Testing & Meteorology
[Accurate Solar Light Measurement] This solar irradiance meter delivers precise measurements of solar light strength, making it indispensable…
As an affiliate, we earn on qualifying purchases.
As an affiliate, we earn on qualifying purchases.
Key Questions
What causes degradation in low-silver heterojunction solar cell electrodes?
The primary cause is interdiffusion between silver and copper layers, leading to defect formation and increased electrical resistance over time.
How does thermal aging affect these electrodes?
Thermal aging accelerates interdiffusion and defect accumulation, causing the internal conductive network to fragment and degrade electrical performance.
What are the implications for solar module manufacturing?
Manufacturers need to focus on interface stabilization techniques to improve long-term reliability while maintaining cost-effectiveness.
Are there potential solutions to prevent degradation?
Possible solutions include adding barrier layers or developing alternative coatings to inhibit interdiffusion, but further testing is required.
When might these findings impact commercial solar modules?
Implementation of stabilization strategies based on this research could begin within the next few years, depending on further development and validation.
Source: PV Magazine
